KTI Ultra-Low Temperature Cold Storage (ULT)
The KTI ultra-low temperature (ULT) cold storage is a high quality, flexible, mobile and reliable storage solution for vaccine manufacturers, pharmaceutical companies, logistics and distribution centers and research institutes.
With air as the refrigerant, the ultra-low temperature storage system is the most innovative product on the market for storing vaccines, pharmaceuticals and other temperature-sensitive substances.
Plant information

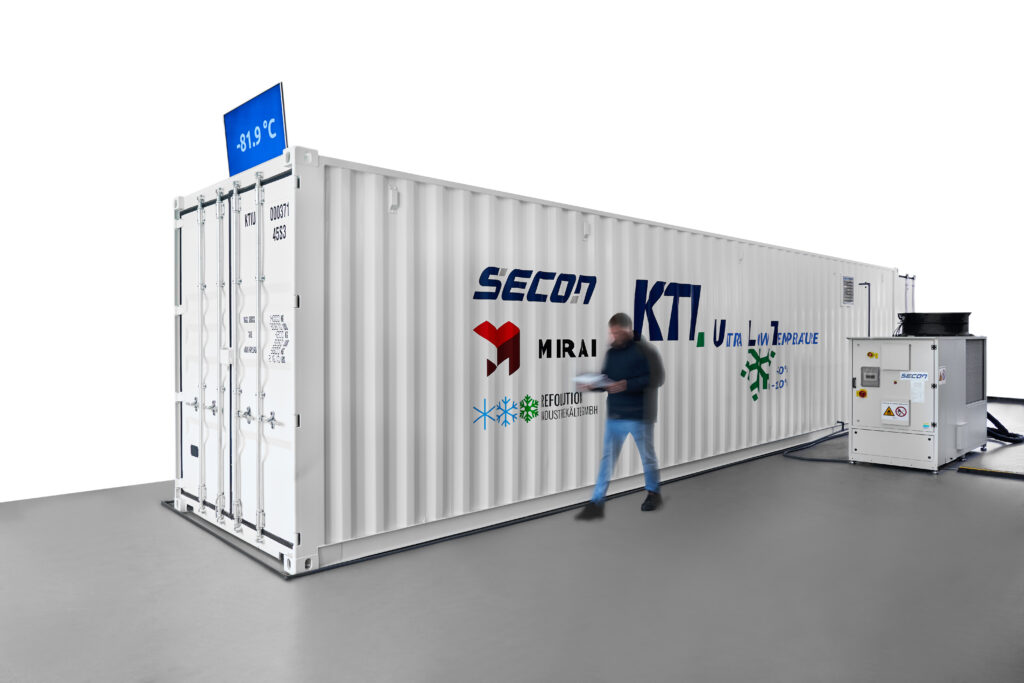

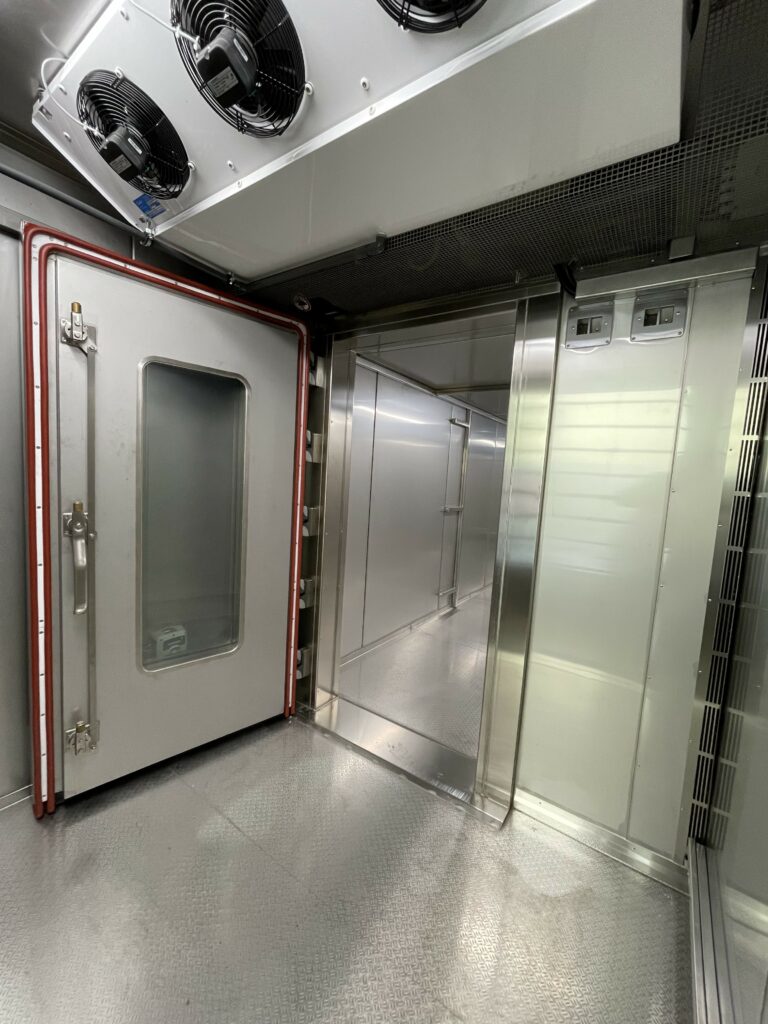

The KTI ultra-low temperature cold storage is in a CSC-certified 40-foot container integrated. This enables quick assembly and allows easy transport worldwide – wherever and whenever the ultra-low temperature bearing is needed. The ultra-low temperature bearing is available as “Box-in-Box”-system, which consists of an air lock zone at -20°C and the Ultra-low temperature section down to -110 °C consists. This two-chamber principle reduces heat input to a minimum. Likewise, the humidity inside can be controlled by dehumidification in the airlock. The air locks used Refrigerants are air, CO2 and propane. Thus, our solution is the first ultra-low temperature storage container with only natural refrigerants -. more sustainability is not possible.
The most important details at a glance
-110
°C
25
m³ storage volume
Air
As refrigerant
40
Foot ISO container
Your advantages of KTI ultra-low temperature cold storage
- The KTI ultra-low temperature cold storage is future-proofas only natural refrigerants are used.
- The KTI ultra-low temperature cold storage operates by the two-chamber principle efficient.
- The KTI ultra-low temperature cold storage is reliable, as oil-free and wear-free operation are available.
- The KTI ultra-low temperature cold storage is mobile installed in a 40 foot ISO container and can be Plug-and-play be operated.
- The KTI ultra-low temperature cold storage allows temperatures from -30°C to -110°C to be flexibly set.
The air chiller

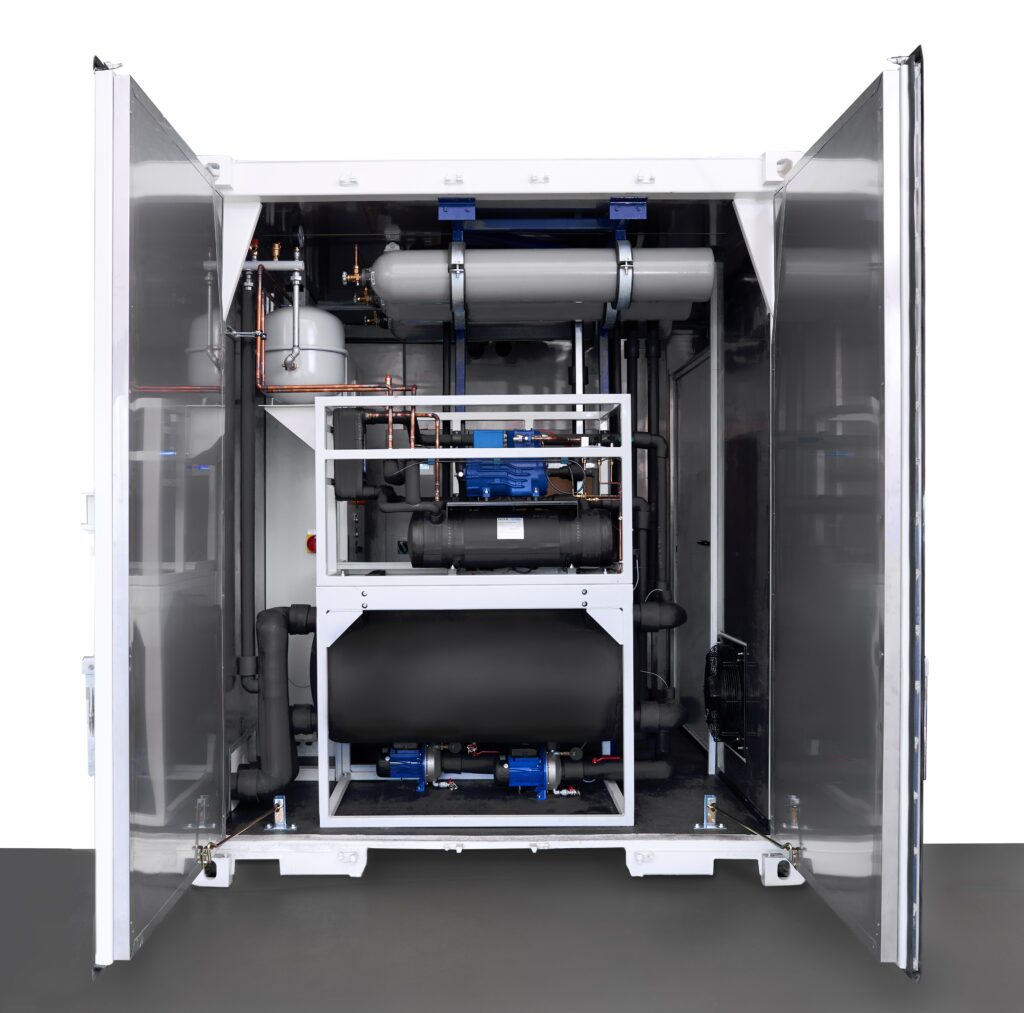

The air chiller in our ultra-low temperature warehouse operates in a open circuit. It draws in air that may contain ice crystals and dirt from inside the cold room, cleans it with two redundant filters, cools it and finally blows the air back into the cold room. Via a distribution system, the expanded cold air is evenly distributed in the cold room, resulting in a Extremely homogeneous temperature distribution throughout the room. The extremely low temperature at the intake reduces the dew point temperature by up to 20 K. This means that the products are stored in a particularly dry environment The air chiller is integrated into the refrigerated machine room on the back side of the ultra-low temperature warehouse and connected to the filter unit on the inside of the refrigerated room.
Expert knowledge
At full load at -80 °C, cold-air technology is about 10 percent more efficient than conventional cascade technologies – at partial load, it is very often up to 30 percent more efficient. This makes cold-air technology viable for the future from both an ecological and an economic point of view!
Michael Walleter
Head of Sales & Technology
Product details
Temperature range
-110 °C to - 30°C
Cooling capacity at -60 °C
5.4 kW
Cooling capacity at -80 °C
4.3 kW
Cooling capacity at -110 °C
2.7 kW
Refrigerant low temperature
Air
Storage volume
25 m³
Storage space
12 m²
Lock temperature
-20 °C
Cooling capacity airlock
6.1 kW
Refrigerant lock
R744 (CO2)
Recooling
Water, glycol
Power supply
50 or 60 Hz, special voltage possible
Engine room
40 feet ISO container
Control
Siemens PLC, color touch screen
