KTI semi-automatic ice storage (MIS-sa)

KTI semi-automatic ice storage systems (MIS-sa) are mostly used when smaller quantities of ice are to be stored or when the process does not need to be fully automated. Although the semi-automatic ice storage systems serve as intermediate storage just like all other ice storage systems, they only enable mechanically supported, manual ice discharge.

Send Inquiry

Plant information

KTI semi-automatic ice storage systems are specially designed solutions that expertly store ice and keep it transportable.

  • Capacity 22 to 26 tons.
  • The Semi Automatic Mobile Ice Storage is installed in a 40-foot container.
  • Can therefore be transported like a standard container on a truck -. can be used worldwide without any problems.

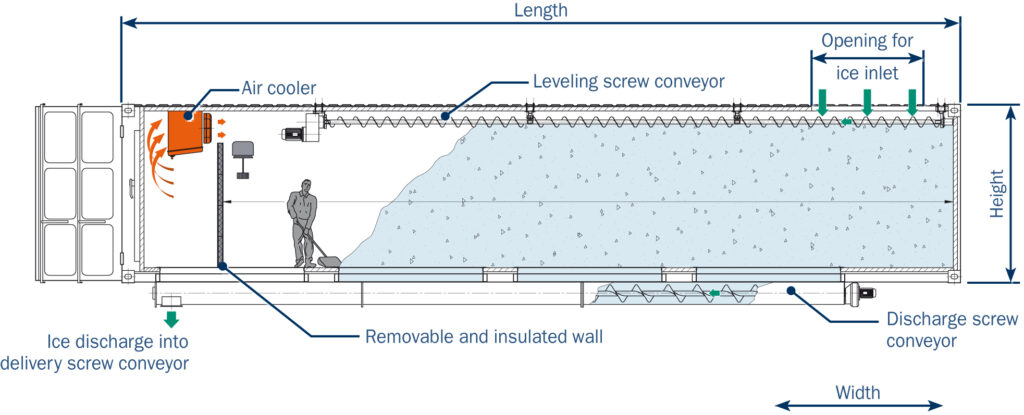

  • The ice storage will automatically filled and via the leveling screw uniform distributed in the container.
  • Through the Modular construction perfectly combinable with the flake ice plant.

The most important details at a glance

22 - 26

Tons storage volume

< 0

°C Room temperature

40

Foot ISO container

Your advantages of KTI ice storage (MIS-sa)

  • KTI semi-automatic ice storage can store large amount of ice and perfectly compensate for peaks in demand.
  • KTI semi automatic ice storage can be fast After connecting the power supply be put into operation.
  • KTI semi-automatic ice storage can be equipped with flake ice machine or plate ice machine. be combined.
  • KTI semi-automatic ice storage are isolated and with a central air cooler equipped.
  • KTI semi-automatic ice storage can be transported on a truck like a standard container and are thus flexibly applicable.

Product details

Storage volume
22, 26 tons
Ice types
Flake ice, slab ice
Room cooling
via central air cooler
Ice discharge
manually via screw conveyors (single), sunk into the ground
Power supply
50 or 60 Hz, special voltage possible
Control
Siemens PLC, color touch screen
