KTI Transport Ice Storage (TIS)

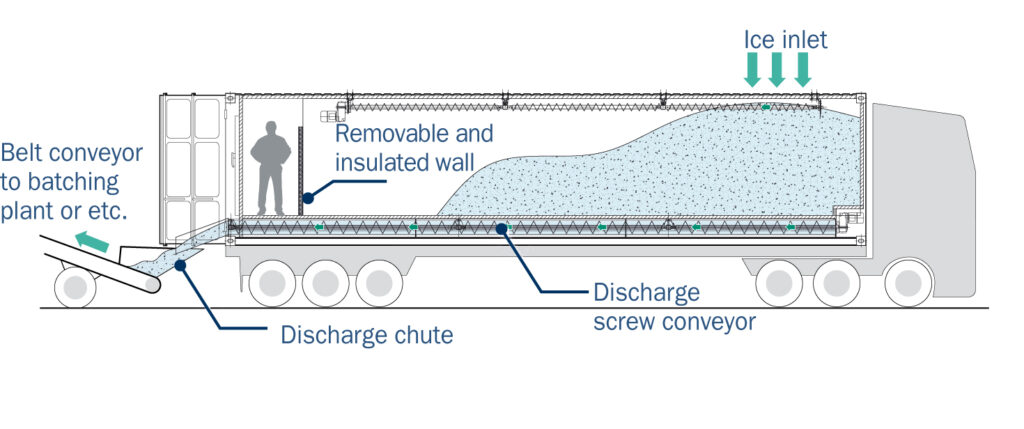

KTI transport ice storage systems (TIS) perform two important functions. First, they store and cool ice in the refrigerated container. Secondly, they can be used to transport ice from A to B. The ice is discharged manually. The ice is discharged manually.
Plant information
KTI transport ice storage systems are specially developed solutions with which the ice can be both stored and transported. Standard refrigerated containers are used, which we convert accordingly for this purpose.
The most important details at a glance
15
Tons transported
< 0
°C Room temperature
40
Foot ISO container
Your advantages of KTI Transport Ice Storage (TIS)
- KTI transport ice storage are designed for the Road transport of ice designed.
- KTI transport ice storage are easy to use.
- KTI Transport ice storage become cooled during transport.
- KTI transport ice storage come in 40 feet reefer containers.
Product details
Transport volume
15 tons
Ice types
Flake ice, slab ice
Ice discharge

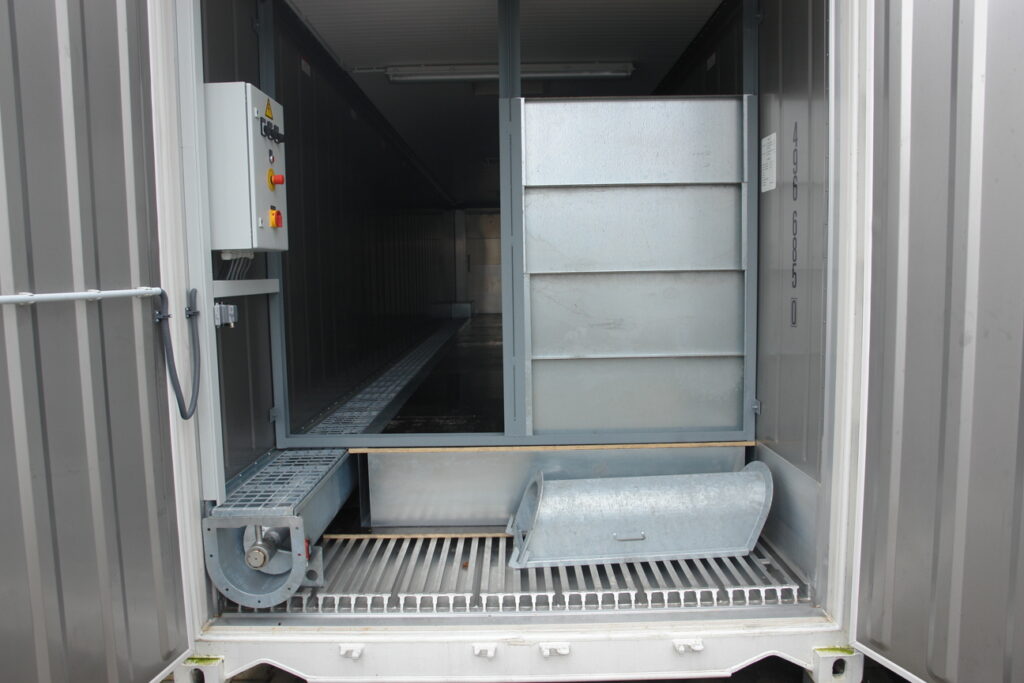

manually via screw conveyors (single), sunk into the ground
Power supply
50 or 60 Hz, special voltage possible
Optional
second ice ejection in the discharge screw, hot-dip galvanized screw
