KTI Portable cold storage (MCS)

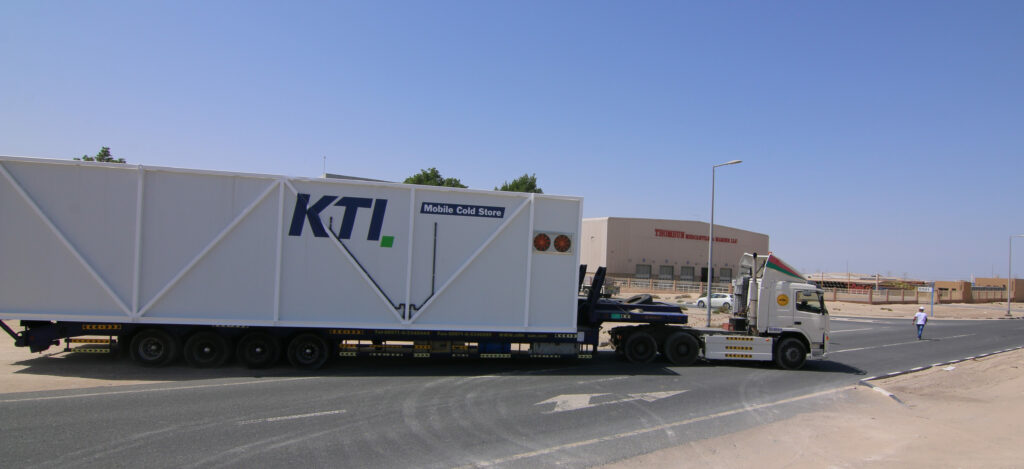

KTI’s portable cold stores provide refrigerated space exactly where it is needed. Thanks to the heavy-duty steel frame, the cold stores are easy to set up, take down and transport. The installation site is thus quickly changed.


Plant information

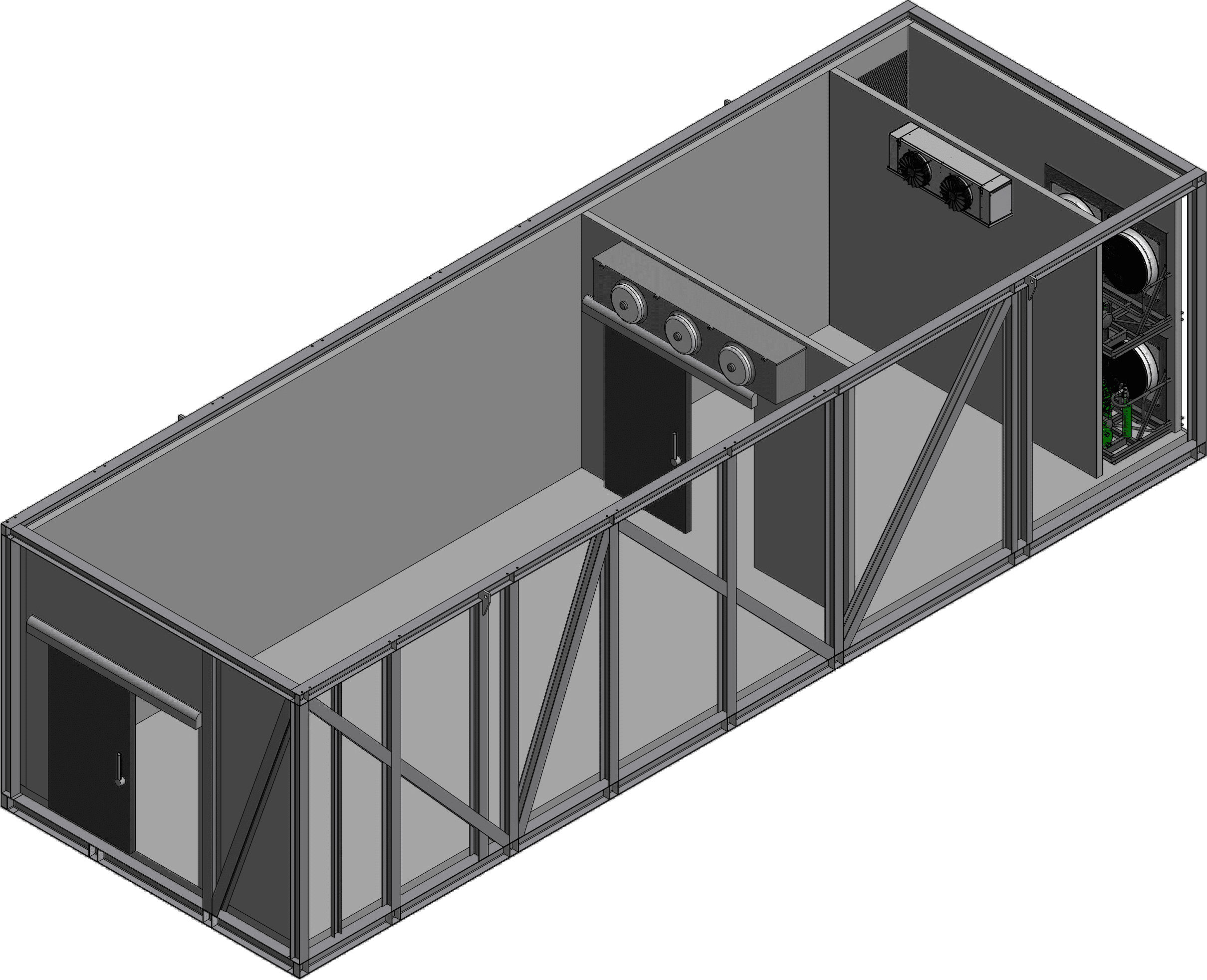

KTI offers the portable cold storages in different equipment variants. Access arrangement can be customized according to the customer’s requirements. Likewise the Type of access selectable and a sliding door or swing door in different widths can be used. Flooring is basically freely selectable, but usually made of aluminum or PVC. If necessary, this can even be made passable with a forklift. A easy accessibility with small vehicle goes without saying to make the handling of the goods as easy as possible. The mobile cold rooms are equipped with two different temperature zones available: +45°C to +5°C or +5°C to -20°C. Alternatively, the mobile cold room can also be equipped with two individually adjustable temperature zones configured, which brings even more flexibility in storage. Whether as stand-alone system, on top of each other stackable or side by side, the portable cold storages of KTI offer a flexible solution for all refrigerated storage requirements.

The most important details at a glance

+45 / +5

°C Temperature range 1

+5 / -20

°C Temperature range 2

200

m³ storage volume

Your advantages of mobile cold rooms

  • The KTI Portable cold storages are ready to plug in delivered and are immediately in operation.
  • The KTI Portable cold storages provide cold storage space without structural measures.
  • The KTI KTI Portable cold storages can always be reused and for a other purpose be used.

Product details

Temperature range
+45 / +5 °C
+5 / -20 °C
Insulation thickness
40 mm (PU)
100 mm (PU)
Storage volume
221 m³
204 m³
Inner dimensions
13.3 x 4.5 x 3.7 m
13.1 x 4.4 x 3.6 m
External dimensions
15 x 4.9 x 4 m
15 x 4.9 x 4 m
Refrigerant
R134a
R 449a
Max. Outdoor temperature
+45 °C
+45 °C

Gallery​
