Insulated water tanks (CCWT / SFWT)
KTI offers you a complete range of perfectly insulated water tanks. These are optimally adapted for use with these KTI plants: Ice water plants, cold water plants, flake ice plants, plate ice plants and SAUTER hot water plants.
Product information

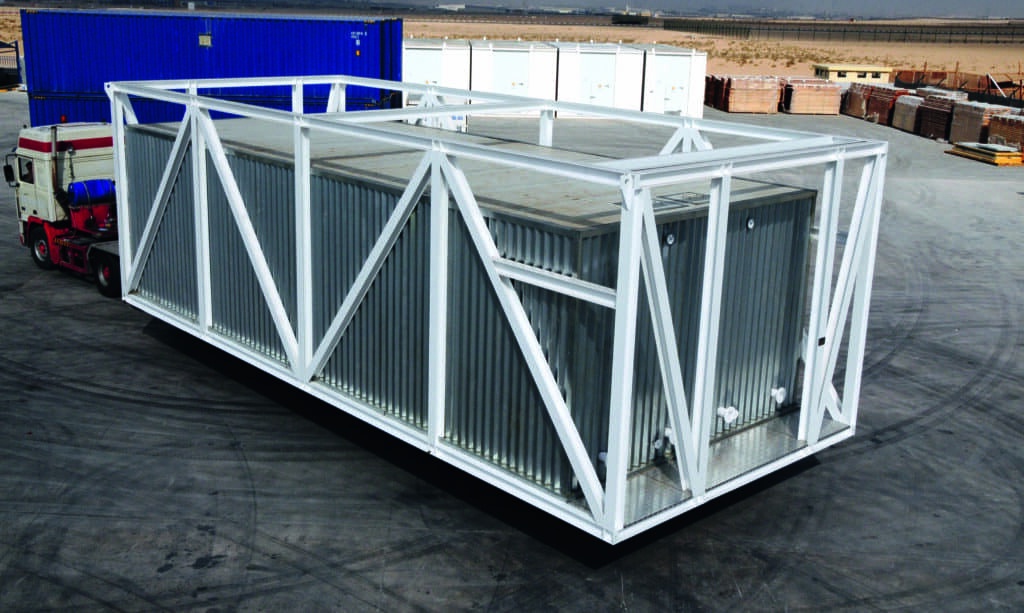

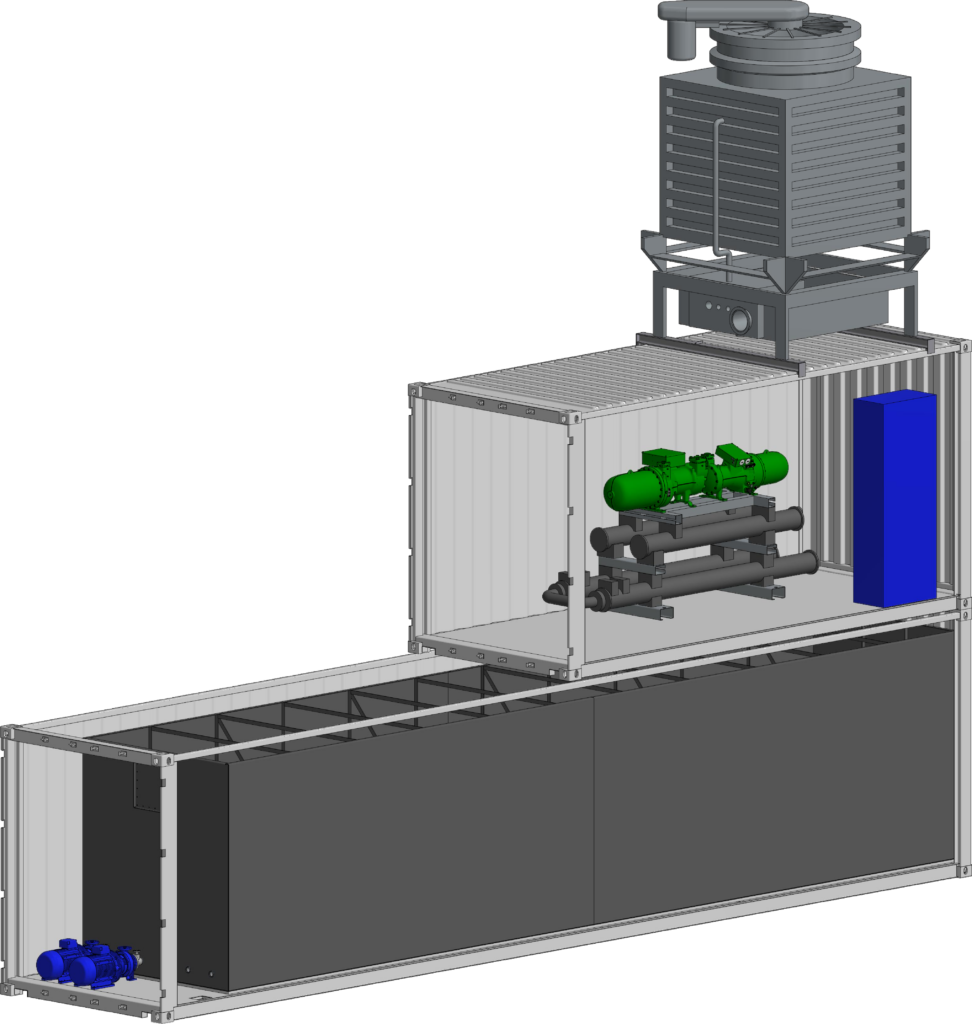

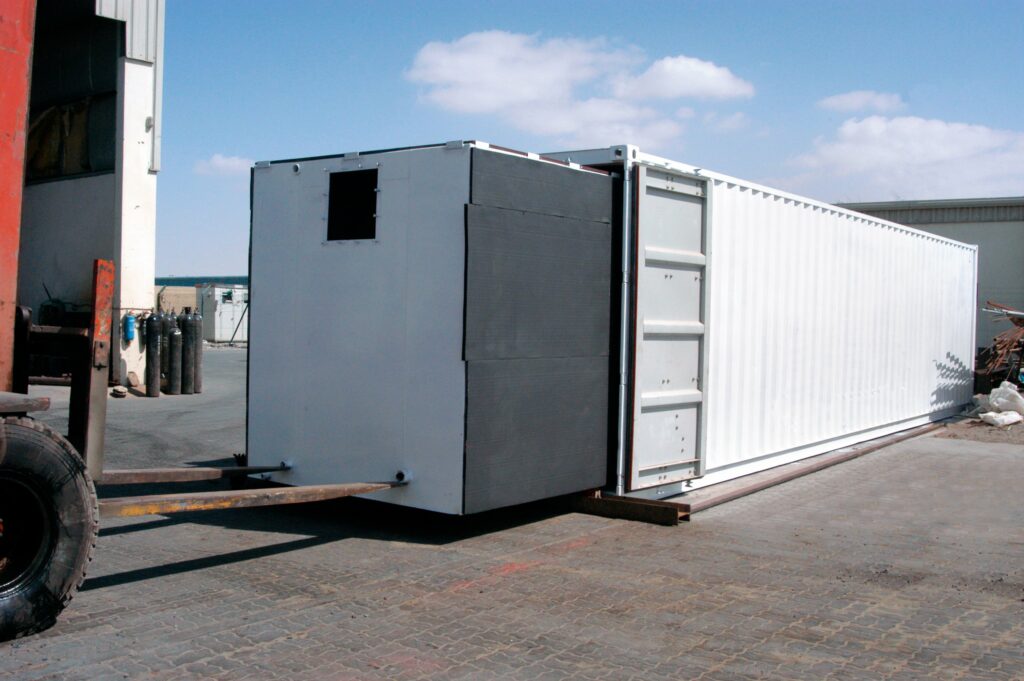

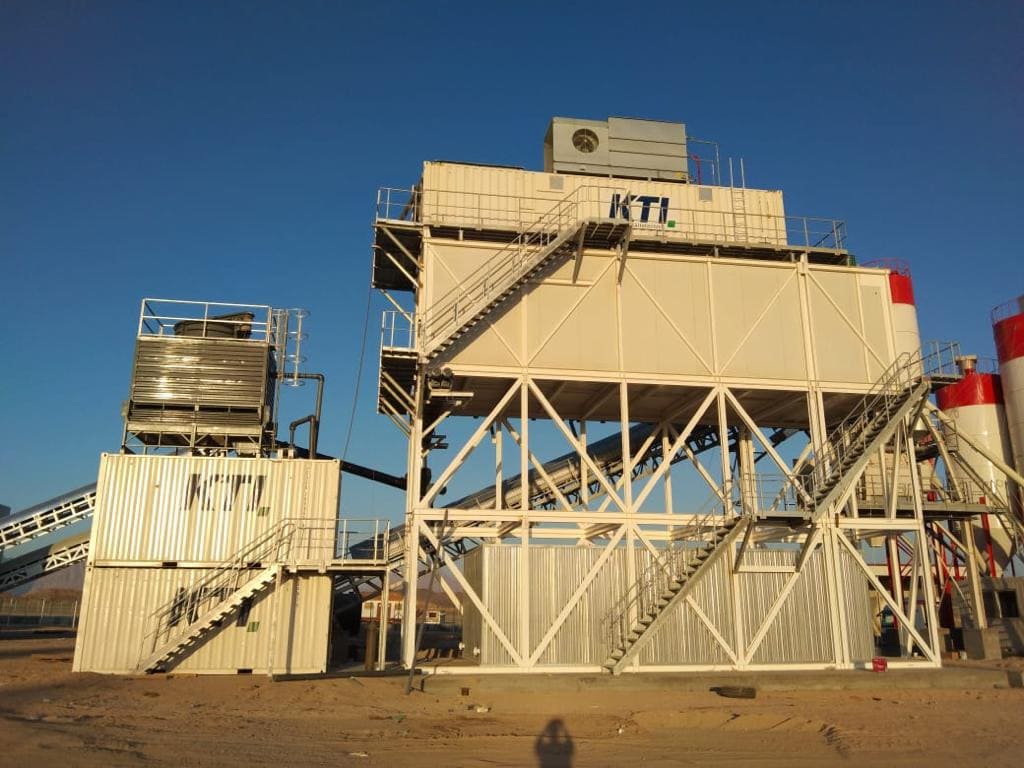

Up to a maximum size of 58 m³ integrated KTI an insulated steel cold water tank or ice water tank in a container. Depending on the size, a 20-foot or 40-foot ISO container used. The containerized cold water tank is extremely flexible and mobile. Up to a maximum size of 150 m³ installed KTI a steel insulated cold water tank in a steel frame, which is adapted to the size of the tank. Likewise, the cold water tank can be installed in a steel frame suitable for the ice plants or cold water plants. In this option, the steel frame is also the basic structure of the refrigeration system of KTI. If you decide for a KTI ice water plant or KTI chilled water plant in the small or medium capacity range (up to approx. 200 kW), there is the option to install an insulated Cold water tank together with the refrigeration plant in a common container to be installed. This not only saves space, but also costs for transport and installation.
The most important details at a glance
58
m³ in 40-foot container
150
m³ in steel frame
25
m³ with plant in container
Your advantages of insulated water tanks
- KTI water tanks are Fully heat insulated.
- KTI Water tanks are high flexibly.
- KTI Water tanks can be equipped with Pumping stations be equipped.
- KTI Water tanks complement the hot and cold water systems.
Expert knowledge
Our water tanks have been an optimal complement to our cold and ice water systems for years. If customers do not have their own water tank, we at KTI can supply insulated water tanks, which are then immediately adapted to our requirements. Often the water tanks are also used as a substructure under our ice plants to save even more space.
Raman Rangan
General Manager, VIP Dubai
