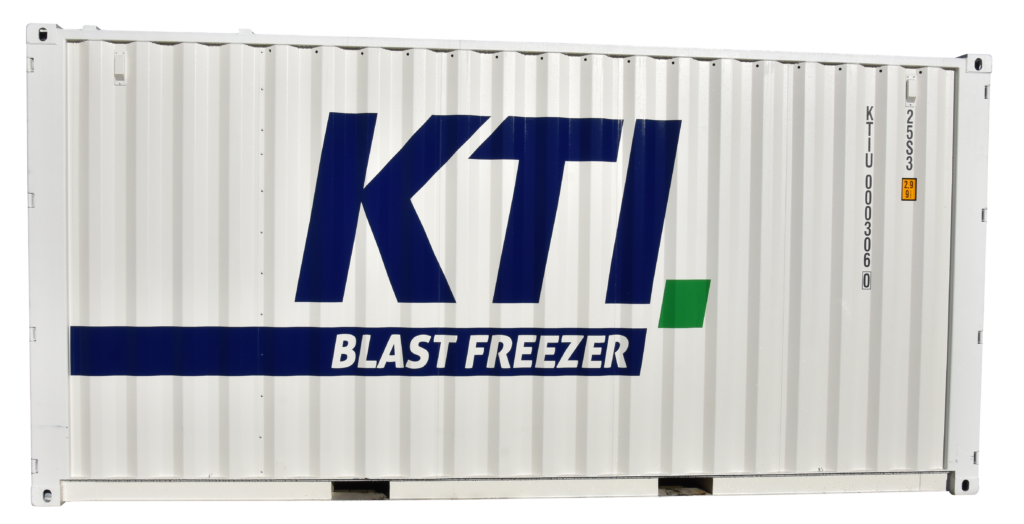

KTI Containerized blast freezer (CBF)
The containerized blast freezer for industrial applications is mainly used when products need to be cooled or frozen as quickly as possible to a temperature of -18°C. The containerized blast freezer is particularly suitable as a supplement to existing freezing capacities. Due to its container design, it is particularly suitable as a supplement and quick expansion of existing capacities for freezing. As a stand-alone product, the industrial blast freezer often finds its use in areas that are far away, as it can be easily transported.
Plant information
The container solution from KTI is another Premium product in the form of a blast freezer for industrial applications. The plant is according to industrial standards have been developed. Thus, components that are well-known in plant construction in the industrial environment are used: stainless steel evaporators, welded steel lines, GRP shock protection, etc. are used here. This results in an extremely more robust and durabler blast freezer emerged. A easy operation and maintenance make the blast freezer, which is installed completely ready to plug in, a perfect solution when it comes to Fastest freezing of high-quality products.
The most important details at a glance
5
Tons of freezing
-30
°C Air temperature
100 %
ready to plug in on site
20
Foot ISO container
Your advantages of containerized blast freezers for industry
- The industrial blast freezer is very easy to operate and maintain.
- The industrial blast freezer can completely self-sufficient be operated.
- The industrial blast freezer follows a industrial standard.
- The industrial blast freezer is very robust and durable.
Product details
Freezing amount
up to 5 tons
Product initial temperature
5 °C (optimal)
Product freezing temperature
-18 °C
Max. Ambient temperature
40 °C
Compressor
Piston compressor, open
Condenser
air-cooled
Air cooler
Stainless steel evaporator
Engine room
20-foot ISO container, optionally insulated
Power supply
50 Hz or 60 Hz, special voltages possible
